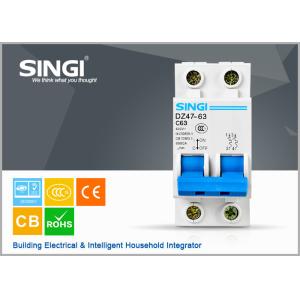

1.Application
The product is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with GB10963,IEC60898 standards.
2.Main technical data
1.Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A;
2.Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;
3.No. of pole:1P,2P,3P,4P
4.Breaking capacity:4.5KA,6KA;
Standard |
| IEC60898 |
Number of poles |
| 1P,2P,3P,4P |
Rated current(In) |
| 6,10,16,20,25,32,40,50,63 |
Rated voltage(Un) |
| AC240/415V |
Rated frequency |
| 50/60Hz |
Tripping curve |
| B,C,D |
Release action characteristics | Time delay | 1.13In>1h Non-trip |
1.45In<1h trip | ||
2.55In 1s~60S trip | ||
Instantaneous(Curve C) | 5In >0.1s Non-trip | |
10In<0.1s trip | ||
Magnetic releases operate |
| B curve:between 3 and 5In |
C curve :between 5 and 10In | ||
D curve: between 10 and 15In | ||
Ratedbreaking capacit(Lcn) |
| 3000A |
Endurance |
| >2500 |
Circumstance temperature |
| -5~+40 |
Electrical life |
| >6000times |
Mechanical life |
| 20000 times |
Tropical ration |
| Treatmen 2(RH95%,at 55°C) |
Protection degree |
| IP20 |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Characteristic Curve
Dimensions
Product adventages:
| Features: | Din rail Type Mcb |
| Biggest Quantity For Useage | |
| Cheapest Type And Very Stable Quality | |
| Used by All Over The World | |
| Quality: | Passed CE, CB Test |
Others (price,package and service)
| Certification : | CE, CB, SGS, ISO 9001:2000 |
| Packing: | 12P in a inner box, 240P in a carton |
| Delivery date: | around 20-25 days based on your order quantity |
| MOQ: | 500pcs |
| Supply Ability: | 100,000pcs/month |
| Payment Term: | T/T, L/C or others for negotiation. |
| Samples Offer: | SHCET will offer free samples in reasonable quantity for customer quality checking. |
| Samples arrangement: | Samples will be prepared to sending in about 3 working days. |
| (And DHL 3-5days; UPS 3-5days; Fedex / TNT 3-5days; EMS 7 days to reach destination) |
